Roche Organ Co.
Opus 34, 1991

Originally Jesse Woodberry (& Co.) (1894)

Sanctuary

8 Town Square
Plymouth, MA, US

55 Ranks - 3,000 Pipes

Something not quite correct?Suggest an Edit

🤝 Instrument entries in Massachusetts sponsored by:

We are grateful for the generous support of our sponsors, who make it possible for us to continue our mission of preserving and promoting the rich history of pipe organs across the globe.

IMAGES

Category:

Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:

View additional stoplist entries if they exist ☝️

Click on a stop or division name for additional details if marked with .

	Great Notes: unenclosed, Man. II, CC-c4
16'	GEDECKT POMMER Notes: 61, 1-12 stopped wood: 13-31 canistered zinc; 32-61 canistered spotted metal
8'	PRINCIPAL Notes: 61, 1-19 zinc, in facade, scroll-tuned; 20-61 spotted metal, old Woodberry Gt. 16' Principal, new languids, slide-tuned; cl scribed "A# OP 16"
8'	CHIMNEY FLUTE Notes: 61, 1-12 stopped wood; 13-61 spotted metal feet, canistered tin bodies, chimneys
4'	OCTAVE Notes: 61, 1-5 zinc; 6-61 spotted metal; slide-tuned; stamped "GR OCT"
4'	SPINDLE FLUTE Notes: 61, 1-46 canistered spotted metal, ½ taper open caps; 47-61 tapered spotted metal, slide-tuned
2⅔'	TWELFTH Notes: 61, Planed spotted metal, slide-tuned; 1-24 tapered
2'	FIFTEENTH Notes: 61, Tin, slide-tuned; CC stamped "DGO"
1⅗'	SEVENTEENTH Notes: 61, Planed spotted metal, slide-tuned; 1-24 tapered
IV-V	FOURNITURE 1⅓' Notes: 291, Planed spotted metal; slide- tuned
8'	Trumpet Notes: 61, 1991; 1-24 zinc with spotted metal bells; 25-54 spotted metal; 55-61 slotted spotted metal flues, slide-tuned

	Swell Notes: enclosed, Man. III, CC-c4
16'	BOURDON Notes: 61, Woodberry; stopped wood; 1-6 outside box
8'	VIOLIN PRINCIPAL Notes: 61, 1-18 zinc; 19-61 spotted metal, former Woodberry Salicional rescaled 1 note, new languids; 1-8 rollers; 1-12 slotted, scroll-tuned; 13-61 slide-tuned
8'	VIOLIN CELESTE Notes: 61, 1-12 stopped wood, pipes marked ''Aeoline Sw"; 13-18 zinc, rollers; 19-61 spotted metal, former Woodberry Aeoline rescaled 7 notes
8'	STOPPED FLUTE Notes: 61, Stopped wood, Woodberry
4'	PRINCIPAL Notes: 61, 1-5 zinc; 6-61 spotted metal; former Woodberry "Gr Pr" with new languids, light nicking; slide-tuned
4'	BLOCK FLUTE Notes: 61, Planed spotted metal, 2/3 taper; slide-tuned; CC stamped "Blockflote 4;" C body seam scribed "given voice by Matthew-Michael Bellocchio Dec. 1973"
2'	WALD FLUTE Notes: 61, Planed spotted metal, 2/3 taper; slide-tuned
1⅐'	SEPTIEME Notes: 61, Planed spotted metal, wide scale, narrow mouth; slide-tuned
IV	SHARP MIXTURE Notes: 244, Planed spotted metal; slide-tuned
II	SESQUIALTER Notes: 122, Planed spotted metal; wide scale; slide-tuned
16'	BASSOON Notes: 61, Tin resonators, regulating flaps, 61 half-soldered lifting lids; 1-12 wooden boots; 1-24 half-length
8'	FRENCH TRUMPET Notes: 61, 1-56 tin boots and resonators, regulating flaps; 1 9-56 French double-block construction, duckbill shallots; 57-61 scrolled-tuned tin flues
8'	OBOE Notes: 61, 1-49 spotted metal bells on zinc stems; 50-61 scroll-tuned spotted metal flues
	SWELL TREMULANT
	CHIMES ON SWELL Notes: 20 tubes t.A-e2

	Choir Notes: enclosed, Man. I, CC-c4
8'	GEDECKT Notes: 61, 1-12 stopped wood, Woodberry Melodia bass; 13-61 canistered common metal
8'	DULCIANA Notes: 61, 1-12 stopped zinc, wood stoppers, box beards; 13-18 tapered zinc, C lip stamped "FT DOL I 50," back stamped "2187;" 19-61 spotted metal; 19-49 tapered; 1949 E. M. Skinner Flauto Dolce from First Parish, Taunton, MA; slide-tuned
8'	UNDA MARIS [t.C] Notes: 49, 13-19 tapered zinc, C lip stamped "FT CEL / 50," back stamped "2187;" 20-61 spotted metal; 20-49 tapered; 1949 E. M. Skinner Flute Celeste from First Parish, Taunton, MA; slide-tuned
4'	PRINCIPAL Notes: 61, 1-5 zinc, scroll-tuned; 6-61 spotted metal, former Woodberry Gt. Octave, rebuilt
4'	FLUTE Notes: 61, Former Woodberry Flute D'Amour; 1-37 stopped wood; 38-61 open common metal, slide-tuned
2'	OCTAVIN Notes: 61, Planed spotted metal; slide-tuned
IV	CYMBAL ⅔' Notes: 244, Planed spotted metal; slide-tuned; 2nd 2' rank muted
8'	Notes: 61, 1-56 tin resonators, domed shallots; 57-61 scrolled tin flues
	CHOIR TREMULANT
	CHIMES ON CHOIR

	Pedal Notes: unenclosed, CC-g1
32'	CONTRA BOURDON Notes: 44, Stopped wood; 1-3 = 10⅔,' pipes, sounding with 13-15; 4-12 in right chamber; 1-3 and 13-20 on swell box roof
16'	PRINCIPAL Notes: 44, 1-33 zinc, scroll tuned; 15-33 fac;ade; 34-44 spotted metal, slide-tuned, former Woodberry Gt. Open
16'	SUBBASS Notes: [from Contra Bourdon]
16'	GEDECKT POMMER Notes: (Gr)
8'	OCTAVE Notes: [from Principal]
8'	BASS FLUTE Notes: 32, Stopped wood, arched mouths; pipes stamped "ST. DIAP"
4'	SUPER OCTAVE Notes: 32, 1-5 zinc, 6-32 Hoyt metal; pipes stamped "SW OP"
4'	CHIMNEY FLUTE Notes: 32, Canistered tin bodies, spotted metal feet; 13-32 chimneys
2'	NACHT HORN Notes: 32, 1-9 zinc, 10-32 common metal; wide scale, narrow mouths; CC stamped "DUL D#"
IV [sic]	MIXTURE Notes: 192, Actually six ranks, tin: 15 - 19 - 22 - 26 - 29 - 33
32'	CONTRA BOMBARDE Notes: 1-12 Bombarde at 16', Principal at 16' + 8' + 4', Bourdon at 10⅔' + 6⅖' + 5⅓' + 4⁴⁄₇'; 13-32 Bombard at 32'
16'	BOMBARDE Notes: 56, 1-24 zinc, 25-56 spotted metal; 50-56 harmonic length
8'	POSAUNE Notes: [from Bombarde]
4'	CLARION Notes: [from Bombarde]

	Couplers Notes: drawknobs above Swell keyboard
	GREAT TO PEDAL
	SWELL TO PEDAL
	SWELL TO PEDAL OCTAVES
	CHOIR TO PEDAL
	CHOIR TO PEDAL OCTAVES
	SWELL TO GREAT
	CHOIR TO GREAT
	SWELL TO CHOIR

	Combinations Notes: Reisner-Shaw, 32-levels, selectable by thumbwheel
	General 1-2-3-4-5-6 Notes: thumb and toe
	Great 1-2-3-4 Notes: thumb
	Swell 1-2-3-4 Notes: thumb
	Choir 1-2-3-4 Notes: thumb
	Pedal 1-2-3-4 Notes: thumb and toe
	Great to Pedal Notes: thumb and toe reversible
	Swell to Pedal Notes: thumb and toe reversible
	Choir to Pedal Notes: thumb and toe reversible
	Sforz.
	Cancel Notes: thumb and toe reversible, indicator light
	Set

	Balanced Pedals
	Swell Expression
	Choir Expression
	Register Crescendo Notes: indicator light

Open In New Tab

Something missing or not quite correct?Add StoplistorSuggest an Edit

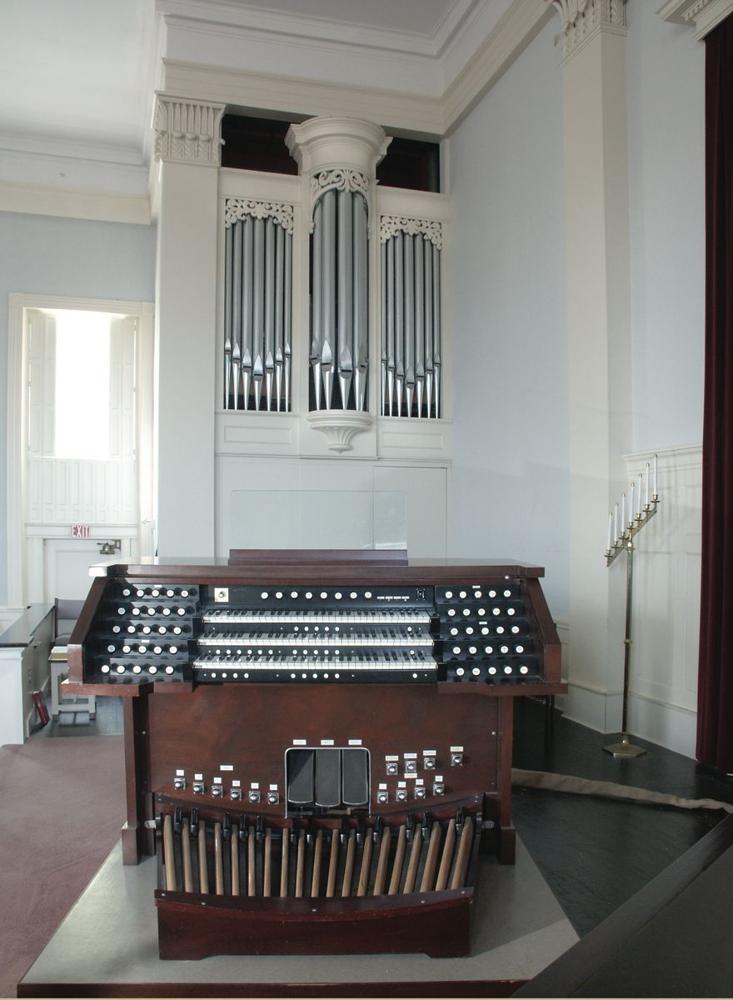

CONSOLES

Selected Item:

View additional console entries if they exist ☝️

Builder: Unknown

Position: Movable Console

Design: Traditional With Roll Top

Pedalboard Type: Concave Radiating (Meeting AGO Standards)

Features:

3 Manuals (61 Notes)32 Note Pedal4 Divisions45 StopsElectrical Key ActionElectrical Stop ActionCrescendoCombination Thumb Piston(s)Combination Toe Piston(s)Coupler Thumb Piston(s)Coupler Toe Piston(s)Sforzando Thumb Piston(s)Sforzando Toe Piston(s)

Stop Layout: Drawknobs in Horizontal Rows on Terraced/Stepped Jambs

Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)

Combination Action: Adjustable Combination Pistons

Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, audio, and blowers ☝️

Exhibited in the 2005 OHS convention(s)

This instrument is: Extant and Playable in this location

Database Manager on September 9th, 2008:

Updated through on-line information from Michael Eaton.

Database Manager on October 30th, 2004:

Status Note: There 1990.

Webpage Links: The Roche organ

Related Instrument Entries: Jesse Woodberry (& Co.) (1894)

Something missing or not quite correct?Add NoteorAdd WebpageorAdd Cross ReferenceorSuggest an Edit
