Charles W. McManis Co.
1976
Originally Charles W. McManis Co. (1964)
Christ Anglican Church
5500 West. 91st Street
Overland Park, KS, US
18 Ranks - 1,165 Pipes - 3 Physical Divisions
Instrument ID: 73236 ● Builder ID: 4134 ● Location ID: 62441
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLISTSomething not quite correct?Suggest an Edit
IMAGES
Category:
Only show images in a specific category ☝️
Something missing or not quite correct?Add ImageorSuggest an Edit
STOPLISTS
Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.
| GREAT🛈 | ||
| 16' | Gemshorn | 97 |
| 8' | Principal | 85 |
| 8' | Rohrflöte | 73 |
| 8' | Gemshorn | |
| 8' | Dulciana | 73 |
| 8' | Unda Maris | 49 |
| 4' | Octave | |
| 4' | Rohrflöte | |
| 2 2⁄3' | Nazard | 61 |
| 2' | Octave | |
| 1 3⁄5' | Tierce | 61 |
| III | Mixture 1 1/3' | 183 |
| III | Mixture 1' | |
| 8' | Trumpet | |
| 4' | Clarion | |
| Tremolo | ||
| Chimes | PF | |
| 8' | SWELL to GREAT |
| SWELL (Expressive)🛈 | ||
| 8' | Flute | |
| 8' | Gemshorn | |
| 8' | Gemshorn Celeste | 49 |
| 8' | Dulciana | |
| 4' | Flute | 61 |
| 4' | Gemshorn | |
| 4' | Dulciana | |
| 2' | Gemshorn | |
| 1 1⁄3' | Quinte | |
| 1' | Gemshorn | |
| III | Scharf 2/3' | 183 |
| 16' | Krummhorn | 73 |
| 8' | Trumpet | |
| 8' | Krummhorn | |
| 4' | Clarion | |
| Tremolo |
| PEDAL🛈 | ||
| 16' | Subbass | 32 |
| 16' | Gemshorn | |
| 10 2⁄3' | Quinte | |
| 8' | Principal | |
| 8' | Gedackt | |
| 8' | Gemshorn | |
| 4' | Octave | |
| 4' | Rohrflöte | |
| 2' | Rohrflöte | |
| III | Mixture 1 1/3' | |
| 16' | Posaune | 85 |
| 8' | Trumpet | |
| 4' | Clarion | |
| 4' | Krummhorn | |
| 8' | GREAT to PEDAL | |
| 8' | SWELL to PEDAL |
Something missing or not quite correct?Add StoplistorSuggest an Edit
CONSOLES
Selected Item:
View additional console entries if they exist ☝️

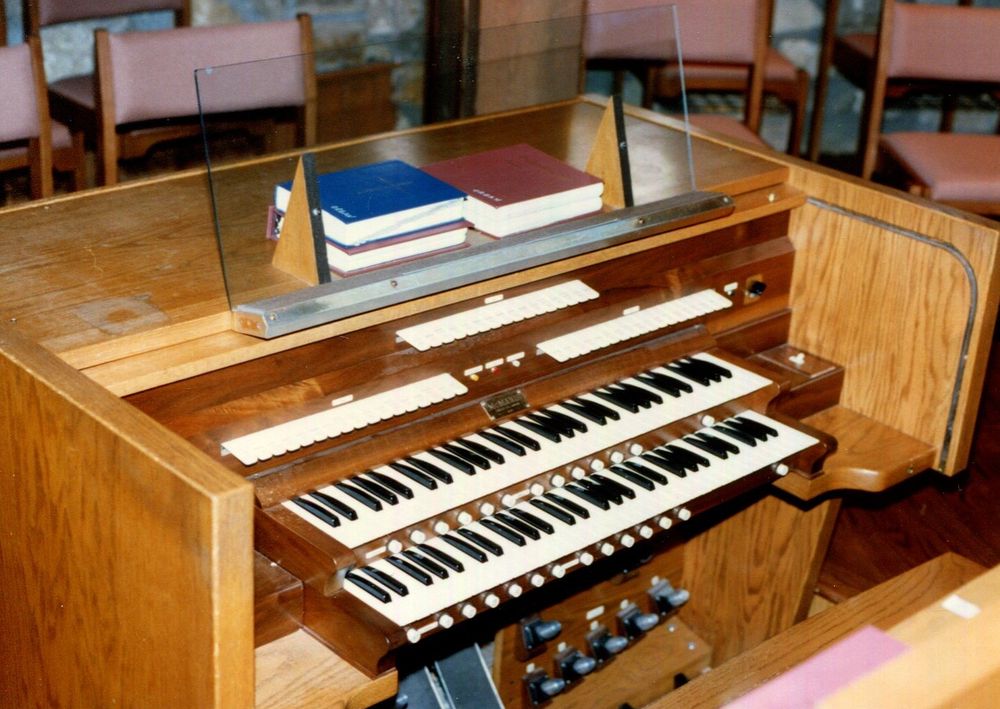

Builder: Charles W. McManis Co.
Position: Console in Fixed Position, Right
Design: Traditional With Roll Top
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (61 Notes)32 Note Pedal3 Divisions14 Stops45 RegistersElectrical Key ActionElectrical Stop Action✓ Crescendo✓ Combination Thumb Piston(s)✓ Combination Toe Piston(s)✓ Coupler Toe Piston(s)✓ Sforzando Thumb Piston(s)Stop Layout: Stop Keys Above Top Manual
Expression Type: Balanced Expression Shoes/Pedals (Meeting AGO Standards)
Combination Action: Adjustable Combination Pistons
Control System: Unknown or N/A
Something missing or not quite correct?Add ConsoleorSuggest an Edit
DETAILS
Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location
Something missing or not quite correct?Add NoteorAdd WebpageorAdd Cross ReferenceorSuggest an Edit
