L. Gnodde LLC
2023

Originally Casavant Frères Ltée. (Opus 3361, 1980)

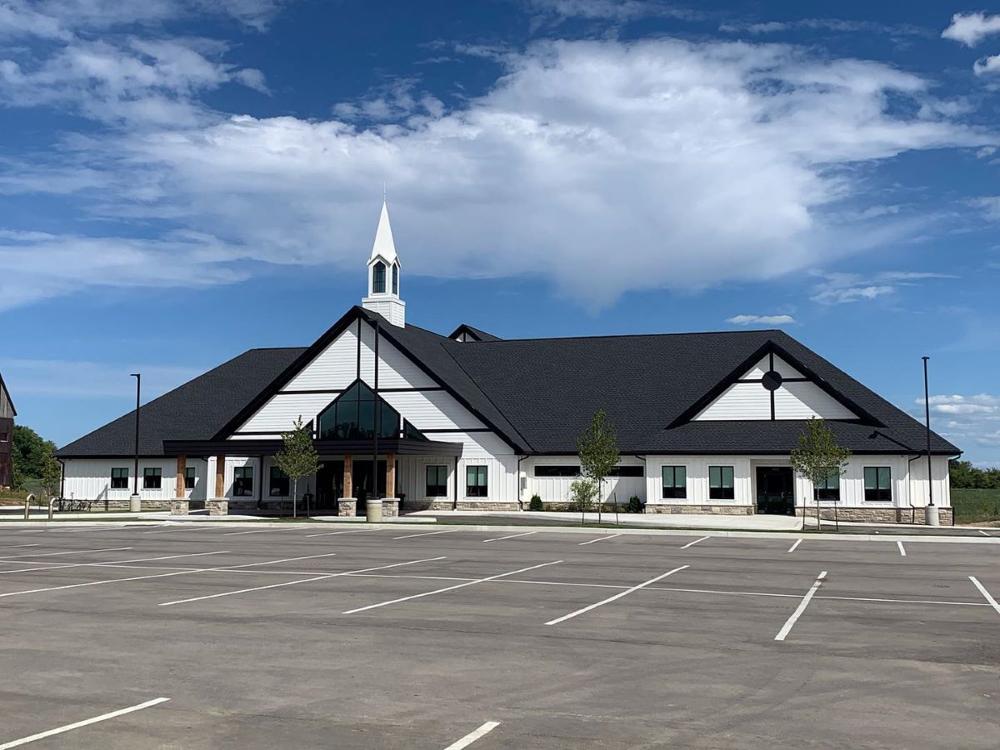

Trinity Canadian Reformed Church

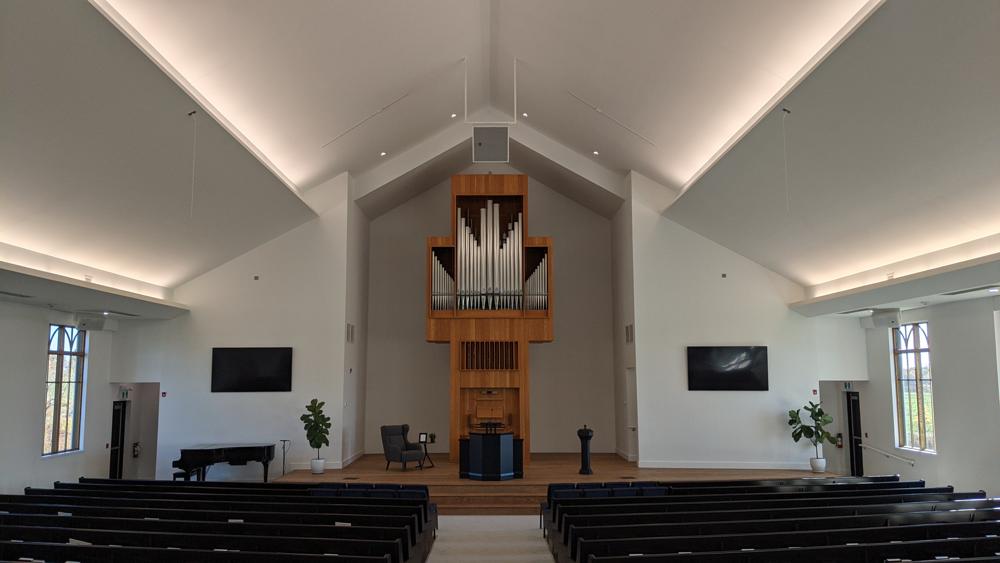

Sanctuary; front

3081 Tisdale Rd.
Mount Hope, ON, CA

22 Ranks - 1,112 Pipes
Instrument ID: 69327 ● Builder ID: 8185 ● Location ID: 59963
⬆️ These are database IDs that may change. Don't use as academic reference.EXPLORE IMAGESVIEW STOPLIST
ADDITIONAL INFORMATION

Something not quite correct?Suggest an Edit

IMAGES

Category:
Only show images in a specific category ☝️

Something missing or not quite correct?Add ImageorSuggest an Edit

STOPLISTS

Selected Item:
View additional stoplist entries if they exist ☝️
Click on a stop or division name for additional details if marked with 🛈.

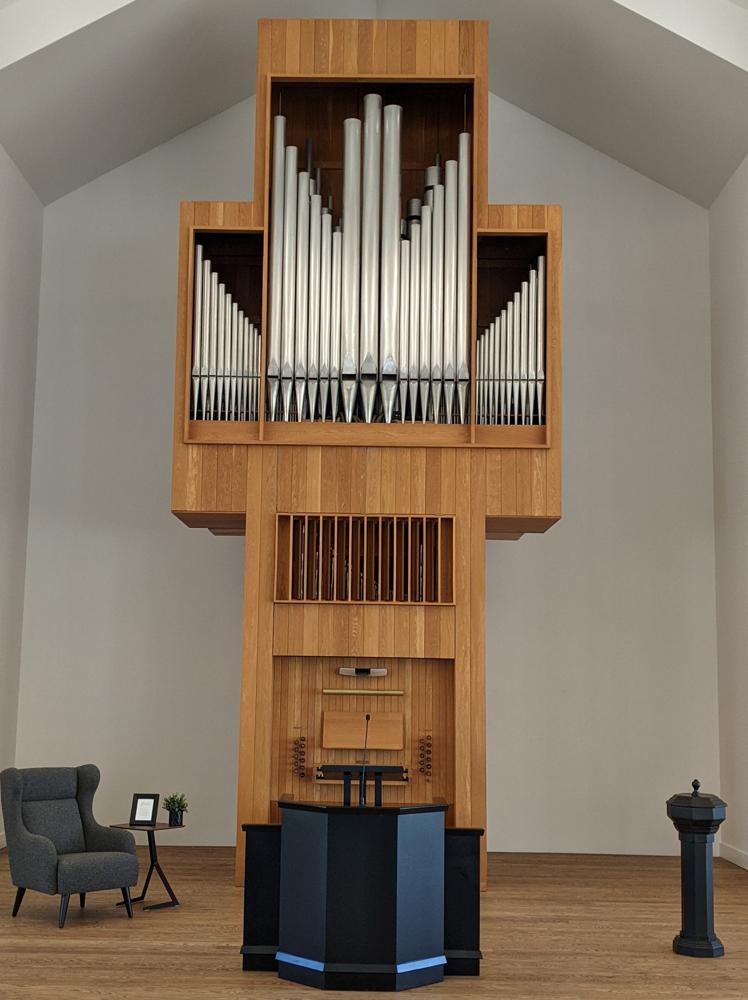

  • Position: In a Case at the Front of the Room
  • Chest Action: Slider With Mechanical Pull-Downs
  • Stop Action: Mechanical (Slider)
  • Notes: (32 Casavant, 24 L. Gnodde LLC)
16'56
8'56
8'56
4'56
2'56
IV224
8'56
  • Position: In a Case at the Front of the Room
  • Chest Action: Slider With Mechanical Pull-Downs
  • Stop Action: Mechanical (Slider)
  • Notes: TC
  • Notes: (common metal, L. Gnodde LLC)
8'56
8'44
4'56
2'56
1'56
II112
8'56
  • Position: In a Case at the Front of the Room
  • Chest Action: Ventil (Details Unknown)
  • Stop Action: Mechanical (Details Unknown)
  • Notes: (wood, L. Gnodde LLC)
  • Notes: 1-12 common with HW 8' Praestant
16'32
8'20 HW, 1-12
4'32
16'32

Temperament: Gnodde SC1

Open In New Tab

Something missing or not quite correct?Add StoplistorSuggest an Edit

CONSOLES

Selected Item:
View additional console entries if they exist ☝️
Builder: L. Gnodde LLC
Position: Keydesk Attached
Design: Traditional Without Cover
Pedalboard Type: Concave Radiating (Meeting AGO Standards)
Features:
2 Manuals (56 Notes)32 Note Pedal3 Divisions18 Stops18 RegistersMechanical (Unknown) Key ActionMechanical Stop Action

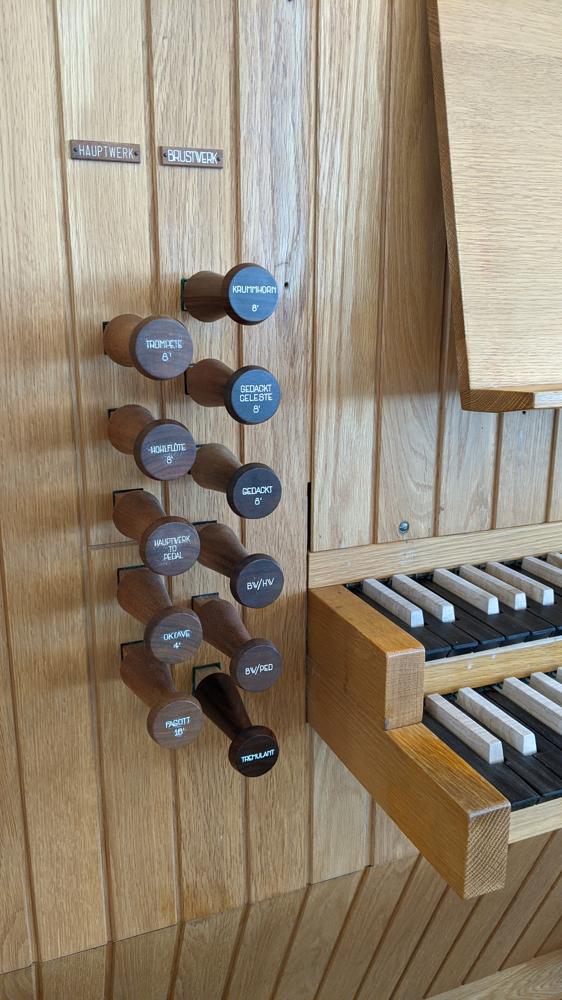

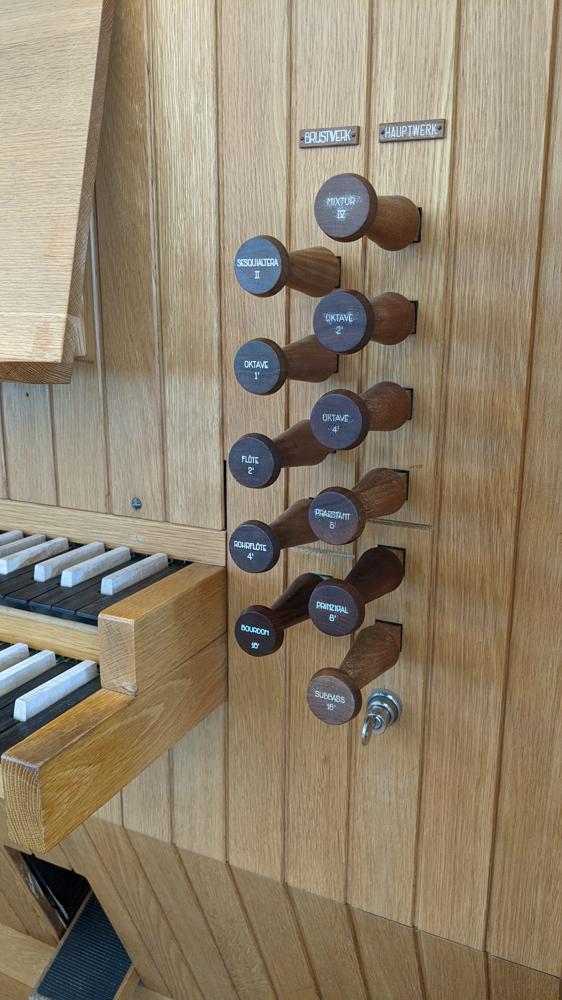

Stop Layout: Drawknobs in Vertical Rows on Flat Jambs
Expression Type: Balanced Expression Shoes/Pedals (Not Meeting AGO Standards)
Combination Action: None
Control System: Unknown or N/A

Something missing or not quite correct?Add ConsoleorSuggest an Edit

DETAILS

Switch between notes, documents, and blowers ☝️
This instrument is: Extant and Playable in this location

Lubbert Gnodde on October 24th, 2023:
This entry represents the installation of a used instrument from another location and a different previous owner. The organ was originally built for the Immaculate Conception R.C. Cathedral in Burlington, Vermont. It was mechanically restored before reinstallation as well as expanded. Two new wedge bellows were added to the existing wind system, and the blower replaced by a new ¾ HP blower. The original Casavant Pedal 16' Bourdon became a new HW stop with 24 additional pipes added. A new wooden 16' Subbass was installed in its place in the Pedal, on a new wind chest behind the main case. The BW received an 8' Krummhorn and a tremolo. The temperament is Gnodde SC1.
Jim Stettner on January 22nd, 2023:
This entry represents the installation of a used instrment from another location and different previous owner. The organ was originally built for Immaculate Conception R.C. Cathedral in Burlington, Vermont. It was mechanically restored before reinstallation as well as expanded. The original Casavant Pedal 16' Bourdon became a new HW stop with 24 additional pipes added. A new 16' Subbass was installed in its place in the Pedal. And the BW received an 8' Krummhorn. Temperament is Gnodde SC1.

Related Instrument Entries: Casavant Frères Ltée. (Opus 3361, 1980)
